X6432 Swivel Head Multi-Angle Machining Metal 3-Axis Universal Milling Machine
The X6432 milling machine is a high-performance universal milling machine with a high-quality cast iron body, featuring a stable and rigid structure. It is suitable for precision machining of a variety of complex parts, including planes, bevels, grooves, and gears. Its large table travel accommodates workpieces of varying sizes, making it ideal for small and medium-volume production in the machinery manufacturing, mold processing, and maintenance industries.
Product features:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Standard Configuration:
Integrated Control Panel
X／Y automatic feed
Electric lift of Zaxis
Standing and lying
Three-axis digital display
Optional Configuration:
electronic oil pump
dividing head
rotary table
tool
clamping kit
Product specification:
| Specifications | Units | X6432 | X6436 |
| Table size | mm | 1500x320 | 1500x360 |
| Table travel | mm | 1000/320/400 | 1000/320/450 |
| T-slot numbers / width /space | mm | 3-16-60 | 3-18-80 |
| Spindle taper | | ISO40(V)
ISO40(H) | ISO40(V)
ISO50(H) |
| Spindle speed range | rpm | 48-1660rpm(V)
40-1300(H) | 48-1660rpm(V)
40-1300(H)) |
| Distance between spindle nose and table surface | mm | 120-520 | 150-550 |
| Distance between spindleaxis and table surface | mm | 0-400 | 0-400 |
| Range of table feed | mm /min | XY:22-555
Z:electric | XY:22-555
Z:electric |
| Milling head swivel range | ° | 360 | 360 |
| Spindle motor power | kw | 3(V)/3(H) | 4(H)/4(H) |
| Feed motor power | kw | 1.1 | 1.1 |
| Weight | kg | 2100 | 2580 |
| Overall dimension | mm | 2050x1750x2000 | 2550x2050x2050 |

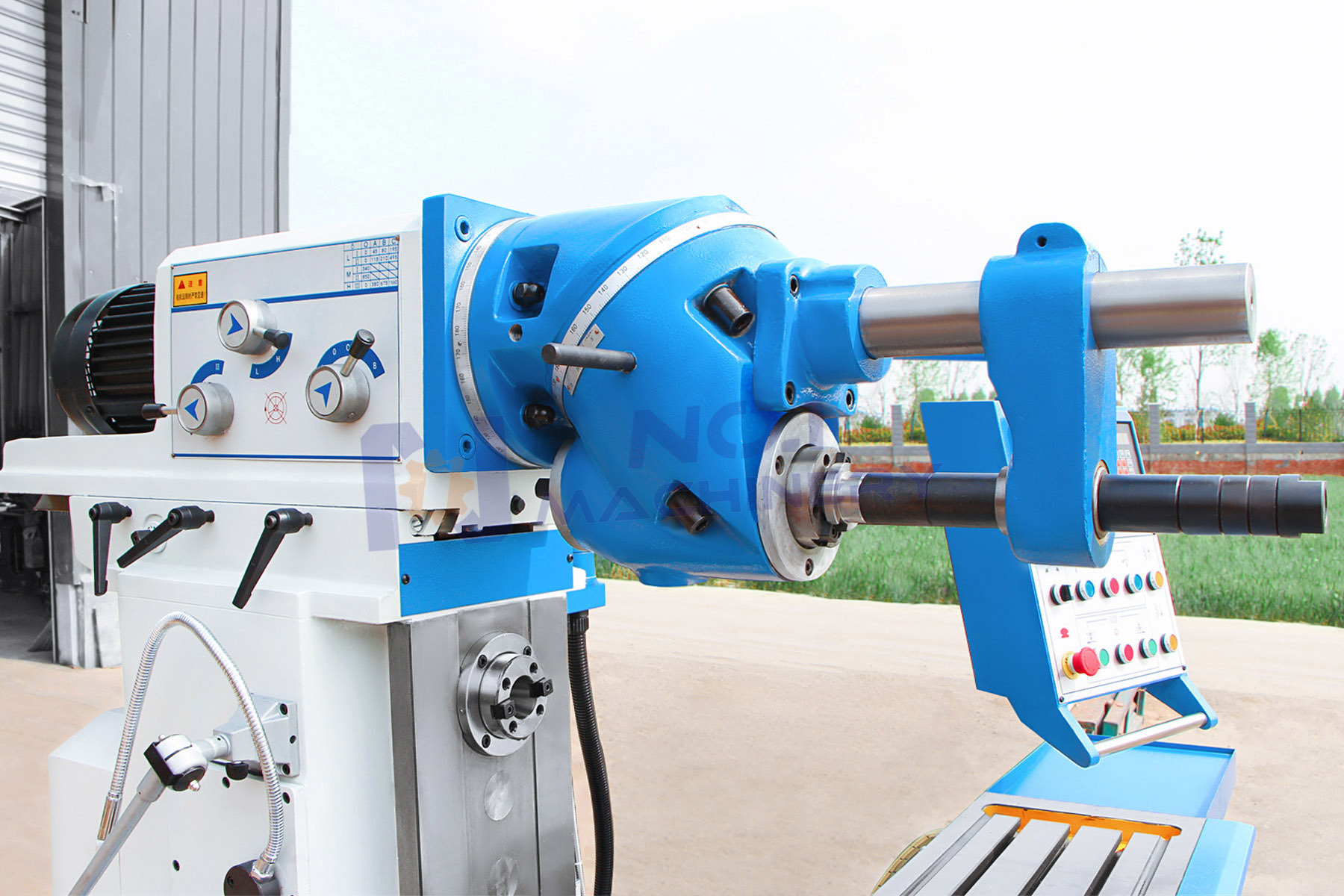

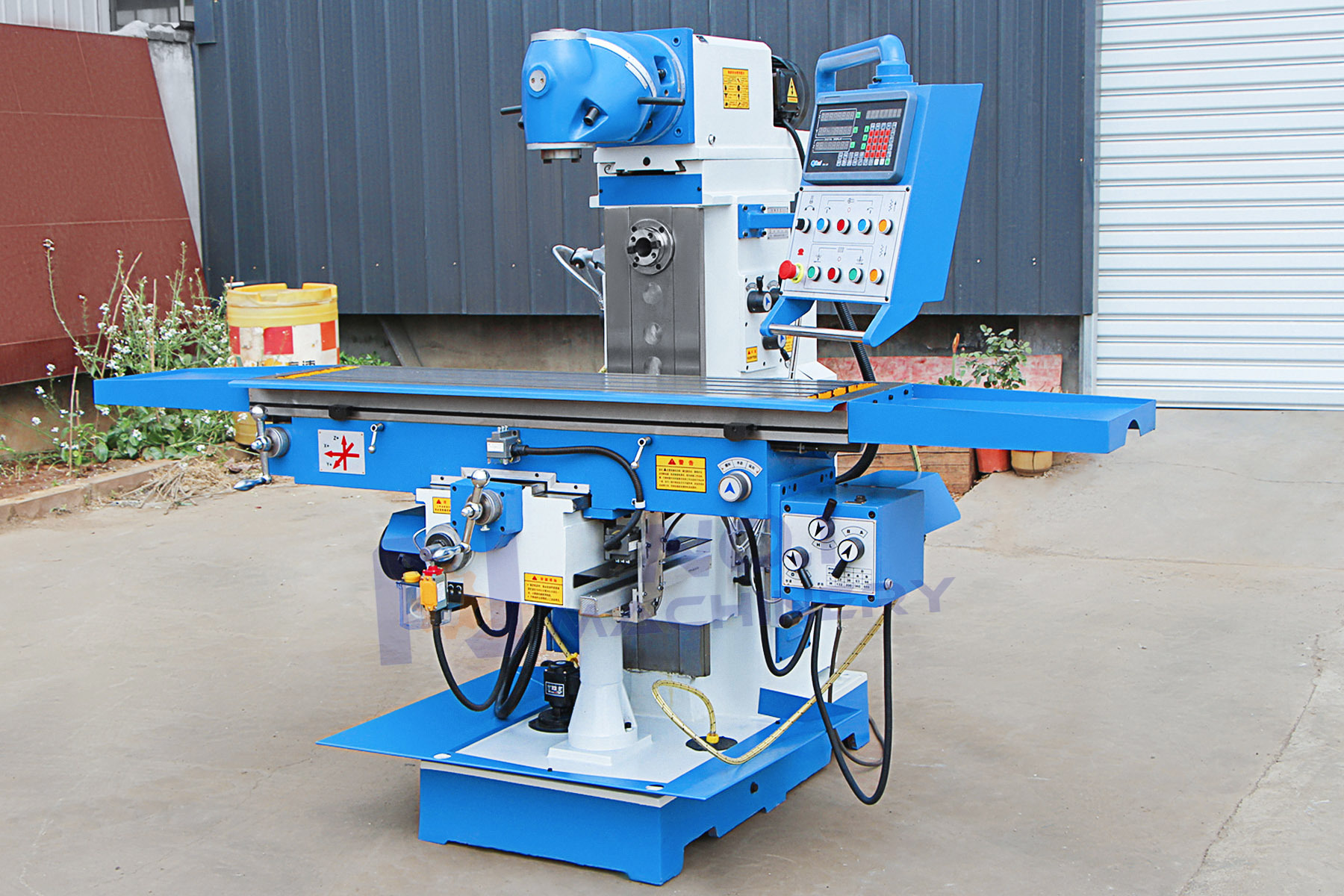

Details Display:
