XA5032 High Performance Knee Type Metal Automatic feed Vertical Milling Machine
The XA5032 is a high-performance, heavy-duty vertical milling machine. Built with a high-quality cast iron body, it offers robust construction and powerful rigidity for high-capacity milling cutting. Featuring three-directional feeds, a large table travel, and excellent load capacity, it is ideal for efficiently milling planes, bevels, and grooves on large and medium-sized parts, serving as a core asset in heavy machinery manufacturing.
The base, fuselage, worktable, middle slide, lifting slide, spindle box and other main components are made of high-strength material casting, and artificial aging treatment to ensure the stability of the machine tool long-term use.
standard configuration:
1. X/Y Axis Automatic Tool Feed & Z Axis Electric Lift:
* The X and Y axes are equipped with automatic tool feed, allowing for precise and automated movement along these axes.
* The Z axis features electric lift, enabling easy and controlled vertical movement.
2. Spindle Options:
* X5032A: The spindle is fixed, meaning it does not move vertically.
* X5032B: The spindle has a stroke of 70mm, allowing for vertical movement over this range.
3. Integrated Operation Panel:
* The machine comes with an integrated operation panel, providing a centralized control interface for ease of use and
operation.
4. Manual Oil Pump:
* A manual oil pump is included for lubrication purposes, ensuring smooth operation and maintenance of the machine.
Product specification:
| PARAMETER ITEM | UNIT | XA5032 | XA5040 |
| Working desk size | mm | 1325x320 (1600x320) | 1700x400 (2000x400) |
| Work table T-slot number/width/spacing | mm | 3-18-70 | 3-18-90 |
| Workbench maximum overload | kg | 500 | 800 |
| X direction (table longitudinal) Manual / Auto | mm | 700/680 | 900/880( 1100 ) |
| Y direction (slide lateral) Manual / Auto | mm | 255/240 | 315/300 |
| Z direction (lifting table vertical) Manual / Auto | mm | 370/350 | 385/300 |
| Fast moving speed | mm/min | X:2300,Y:1540,Z:770 | X:2300,Y:1540,Z:770 |
| Spindle aperture | mm | 29 | 29 |
| Spindle speed range | rpm | 30-1500 | 30-1500 |
| Spindle speed series | steps | 18 | 18 |
| Maximum rotation angle of end mill head | . | ±45° | ±45° |
| Spindle center to table distance | mm | 60-430 | 130-515 |
| Spindle motor power | kw | 7.5 | 11 |
| Dimensions | mm | 2294x1770x1904 | 2556x2159x2298 |
| Machine weight (about) | kg | 3200 | 4250 |

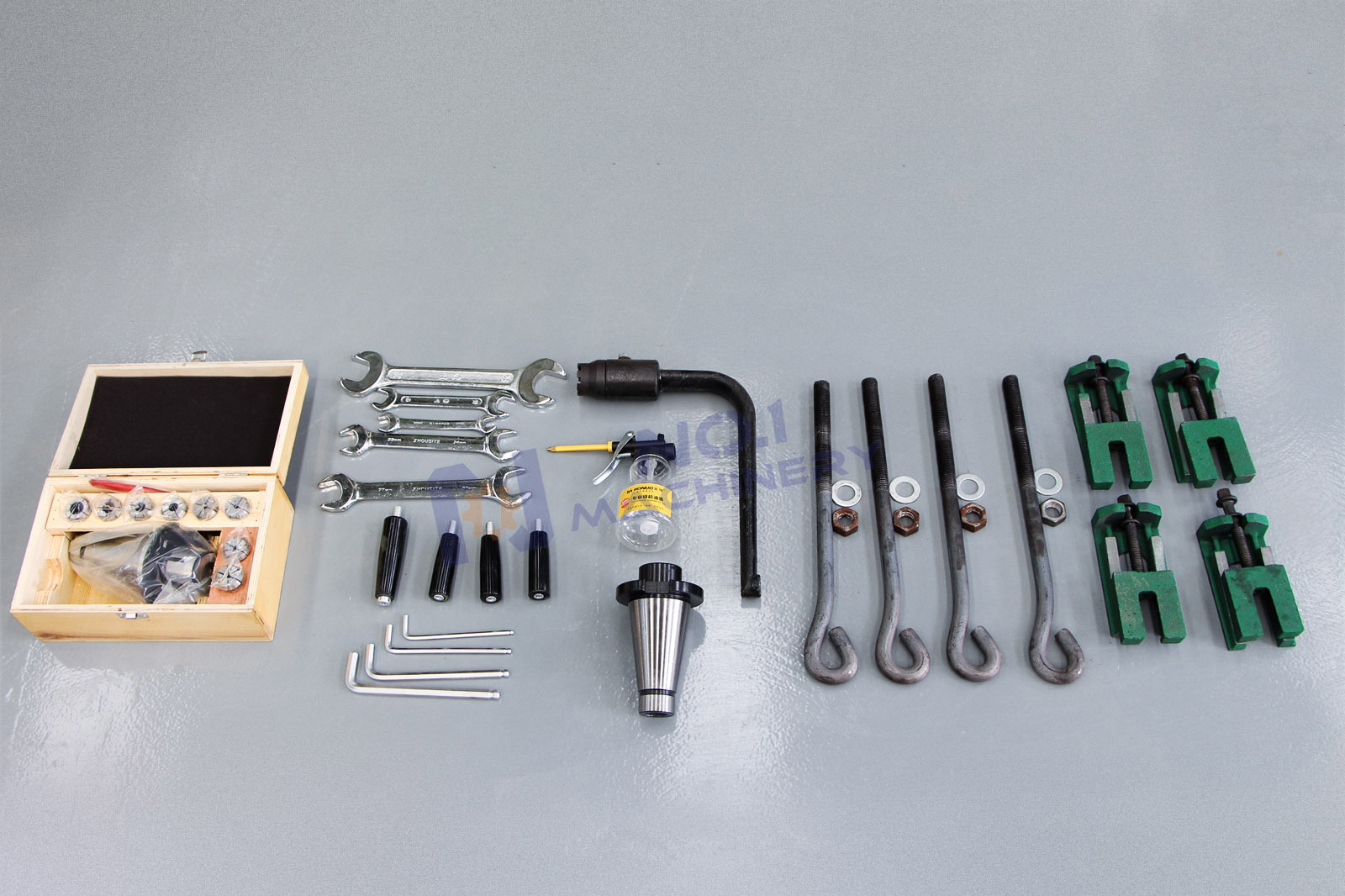

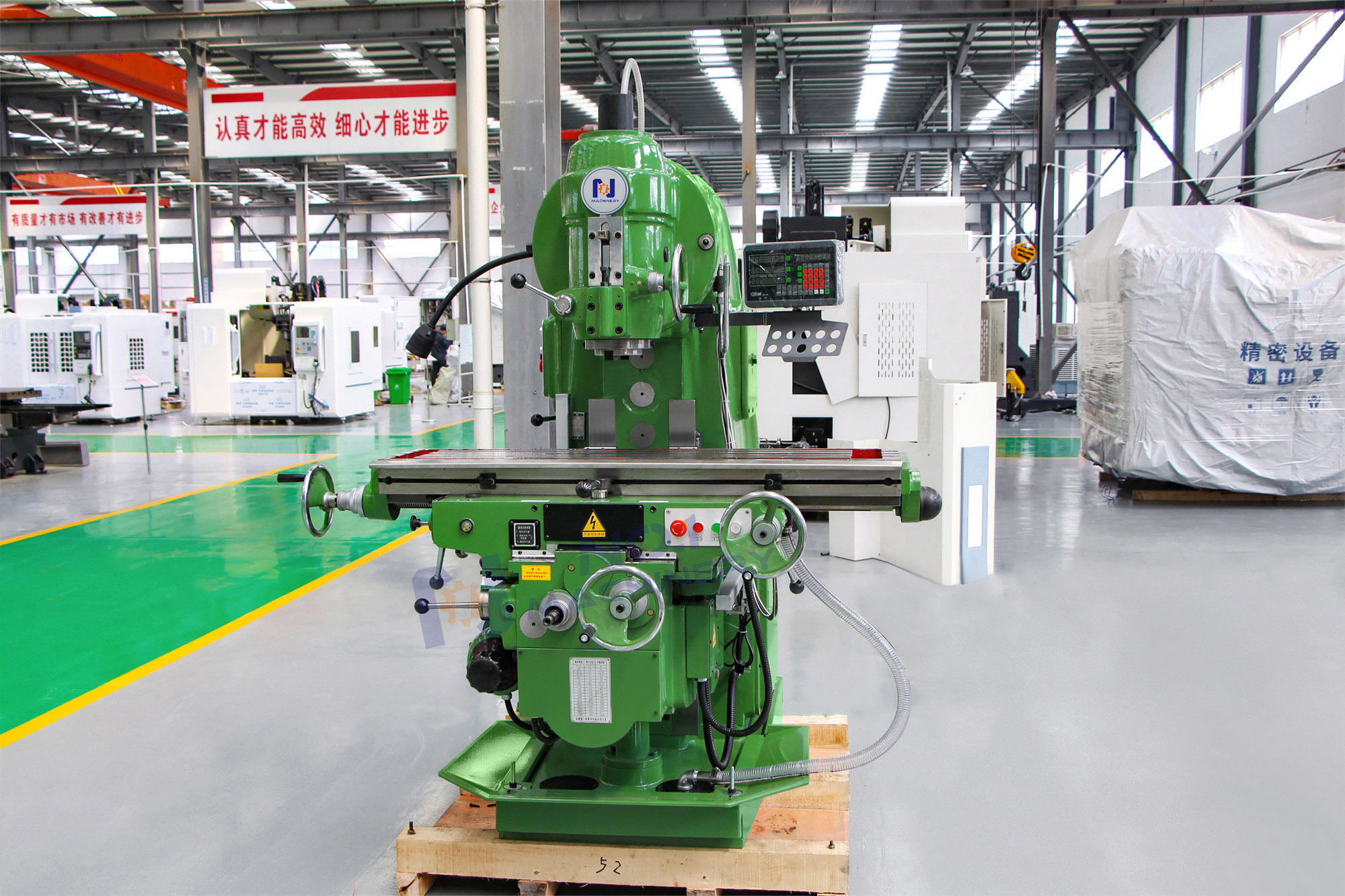

Details Display:
