XA6140 Horizontal Milling Machine Metal Heavy Cutting Universal Milling Machine With DRO

Name: XA6140 Horizontal Milling Machine Metal Heavy Cutting Universal Milling Machine With DRO
Brand: Zaozhuang NO.1
Price: 13000 USD

Buy cheap XA6140 Horizontal Milling Machine Metal Heavy Cutting Universal Milling Machine With DRO product

Brand Name : Zaozhuang NO.1

Model Number : XA6140

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 13000USD

Payment Terms : T/T

Supply Ability : 100 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Table size(mm) : 1700x400(2000x400)

X direction (table longitudinal) Manual / Auto : 900／880

Y direction (slide lateral) Manual / Auto : 315/300

Z direction (lifting table vertical) Manual / Auto : 380/360

Workbench maximum overload(kg) : 800

Work table T-slot number/width/spacing : 3-18-90

Spindle speed range(rpm) : 30-1500

Contact Now

XA6140 Horizontal Milling Machine Metal Heavy Cutting Universal Milling Machine with DRO

The XA6140 is a high-performance, heavy-duty Horizontal milling machine.The base, fuselage, worktable, middle slide, lifting slide, spindle box and other main components are made of high-strength material casting, and artificial aging treatment to ensure the stability of the machine tool long-term use.

standard configuration:

1. The horizontal lifting table milling machine is available in a variety of cylindrical milling cutters, clamping milling
cutters, angle cutters. profile cutters for milling various planes, bevels, such as grooves.
2. If you use the appropriate milling machine parts, gear processing, cams, arc grooves and spiral surface special shape parts.
3. Equipped with universal milling head, circulation table and indexing head and other milling accessories, the range of the
milling machine can be further expanded. This machine is suitable for various machining industries.

Product specification:

PARAMETER ITEM	UNIT	XA6132	XA6140
Working desk size	mm	1320x320(1600x320)	1700x400(2000x400)
Work table T-slot number / width / spacing	mm	3-18-70	3-18-90
Workbench maximum overload	kg	500	800
X direction (table longitudinal) manual/ maneuver	mm	700 /680( 900 Optional)	900/880( 1100 Optional)
Y direction (slide lateral) manual / maneuver	mm	255/240	315/300
Z direction (lifting table vertical) manual/maneuver	mm	380/360	380/360
Cutting feed rate	mm/min	X. Y:23.5-1180 Z:8-394	X.Y:23.5-1180 Z:8-394
Fast moving speed	mm/min	X:2300 Y:2300 Z:770	X:2300 Y:2300 Z:770
Spindle speed range	rpm	30-1500	30-1500
Spindle speed series	steps	18	18
Worktable maximum turning angle	.	±45°	±45°
Spindle center to table distance	mm	30-350	30-410
Spindle motor power	kw	7.5	11
Dimensions	mm	2294x1770x1665	2560x2130x1800
Machine weight (about)	kg	2650	3850

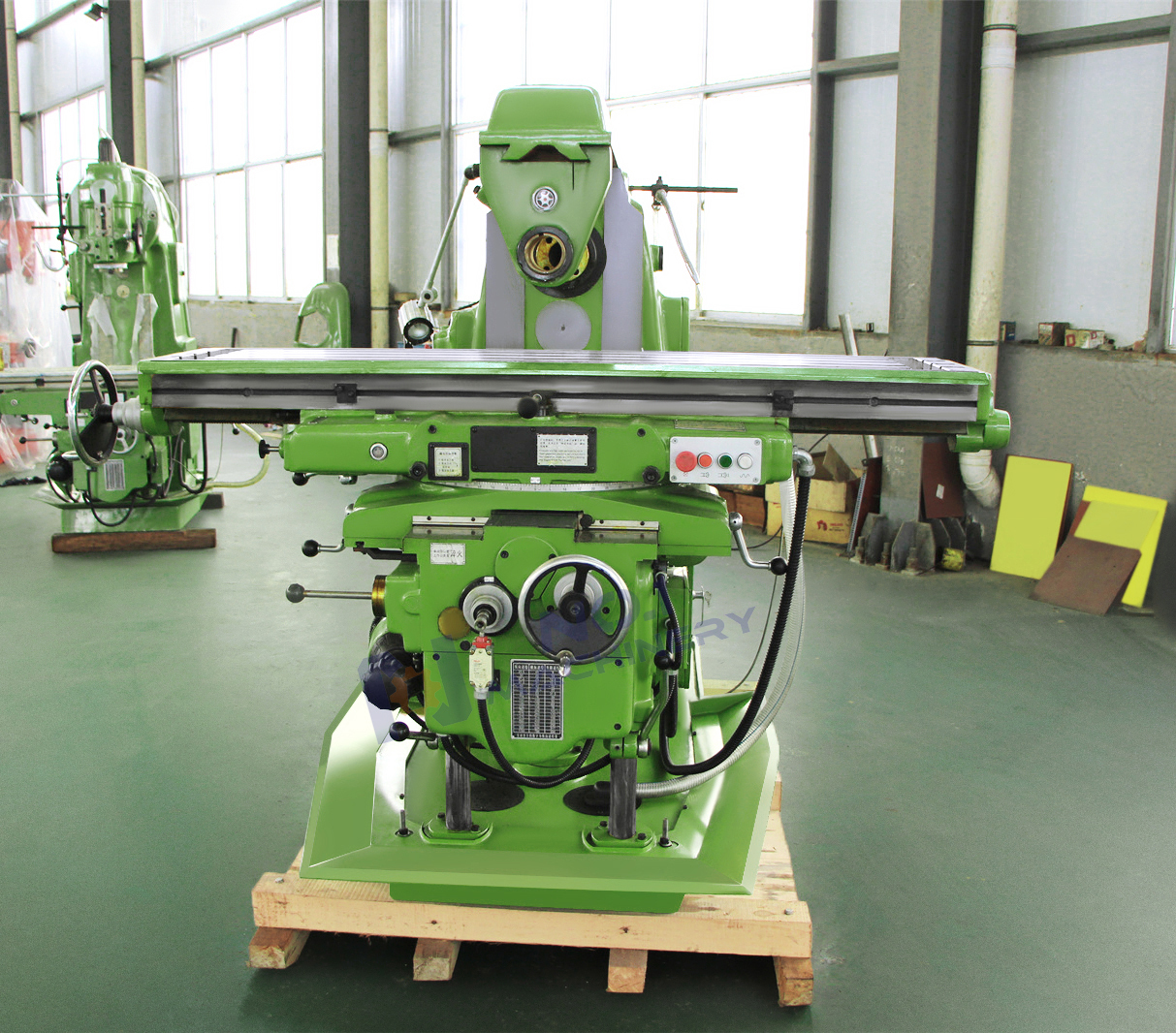

Details Display:

XA6140 Horizontal Milling Machine Metal Heavy Cutting Universal Milling Machine With DRO
