MK250 High Quality Surface Grinder CNC Surface Grinding Machine for Metal
The MK250 Surface Grinding Machine is a high-precision, universal grinder designed for precision surface and end-face grinding of workpieces. It features a compact structure, good rigidity, easy operation, high grinding efficiency, and excellent surface finish, making it ideal for tool rooms and small-batch production.
Standard configuration:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving,and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy,flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Product specification:
| Specifications | | Units | MK250 |
| Worktable size (L * W) | | mm | 250×500 |
| Max. travel of table (L * W) | | mm | 550×280 |
| Table T slot (slot number x slot width) | | mm | 1×14 |
| The grinding wheel size (o. d * w * i. d.) | | mm | Φ200×20×Φ31.75 |
| Distance spindle center line to working table | | mm | 500 |
| Grinding wheel speed | 50HZ | r/min | 3000 |
| 60HZ | r/min | 3500 |
| The vertical (up and down) feed handwheel feed | Handwheel per turn | mm | 2 |
| Handwheel per lattice | mm | 0.01 |
| Transverse (front and rear) feed handwheel feed | Handwheel per turn | mm | 4 |
| Handwheel per lattice | mm | 0.02 |
| Motor power | Spindle motor | kw | 2 |
| Cooling moto | W | 200 |
| Machine weight | Net weight | kg | 900 |
| Gross weight | kg | 1000 |
| External size (L * w * h) | | mm | 2400x1500x1800 |

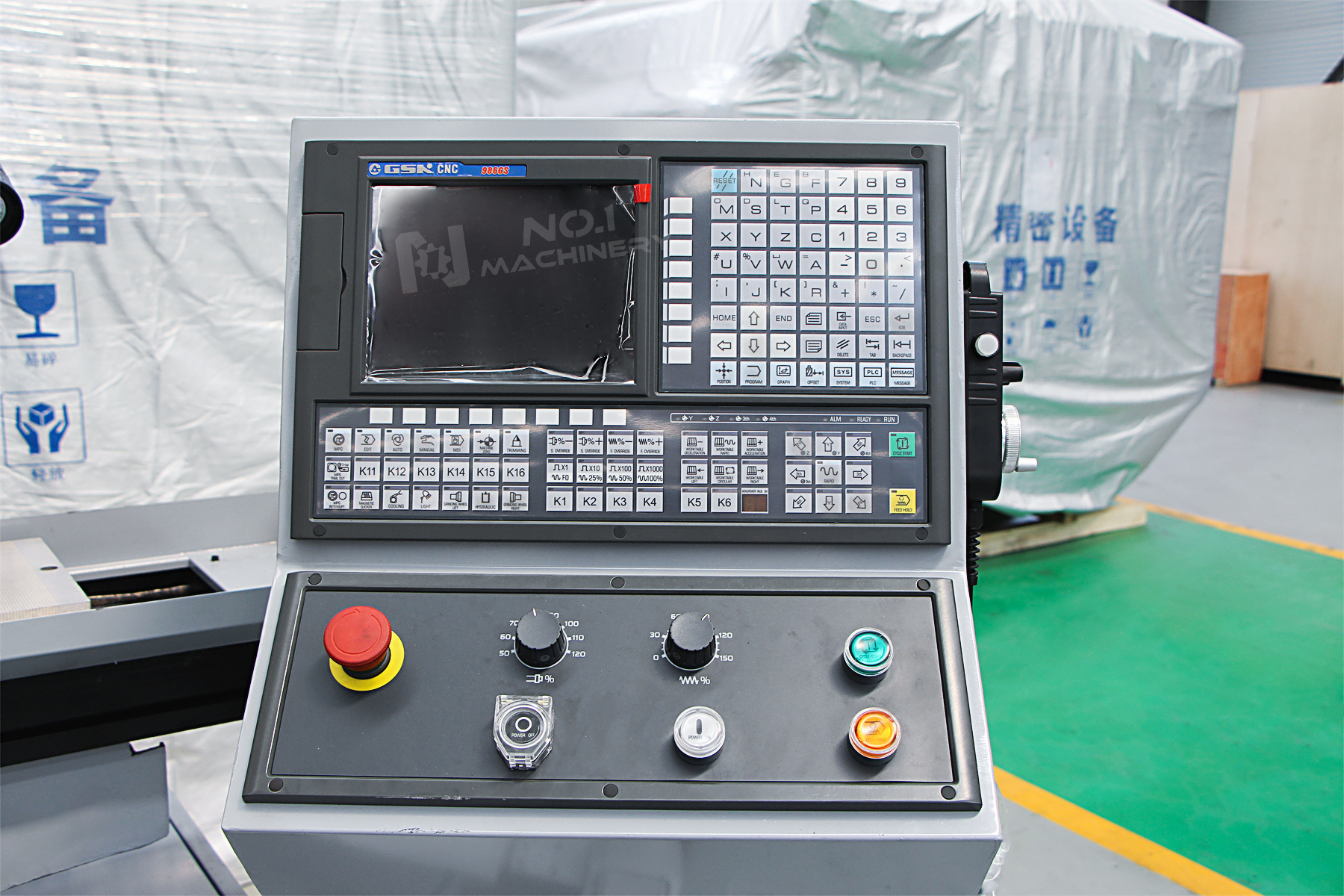

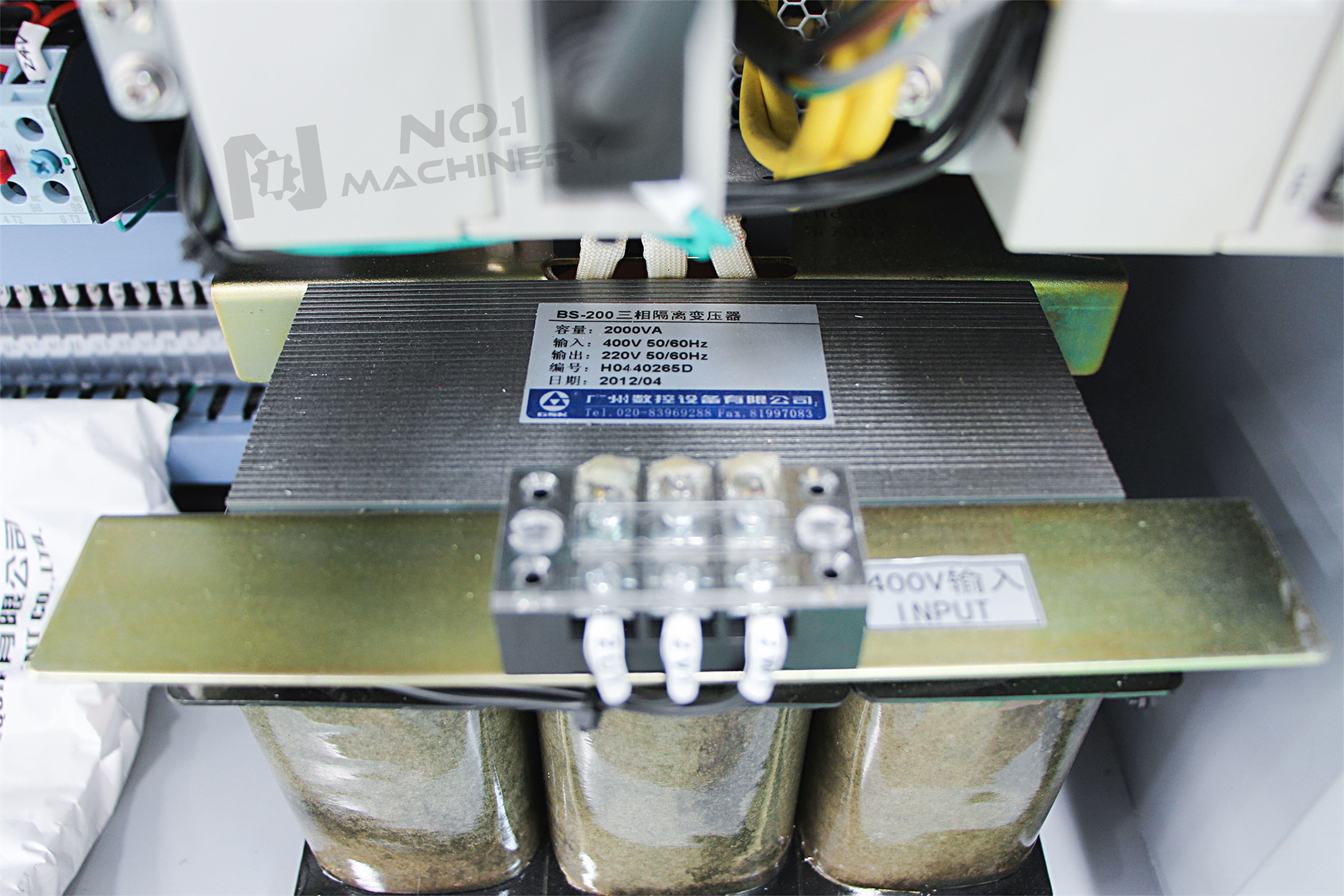

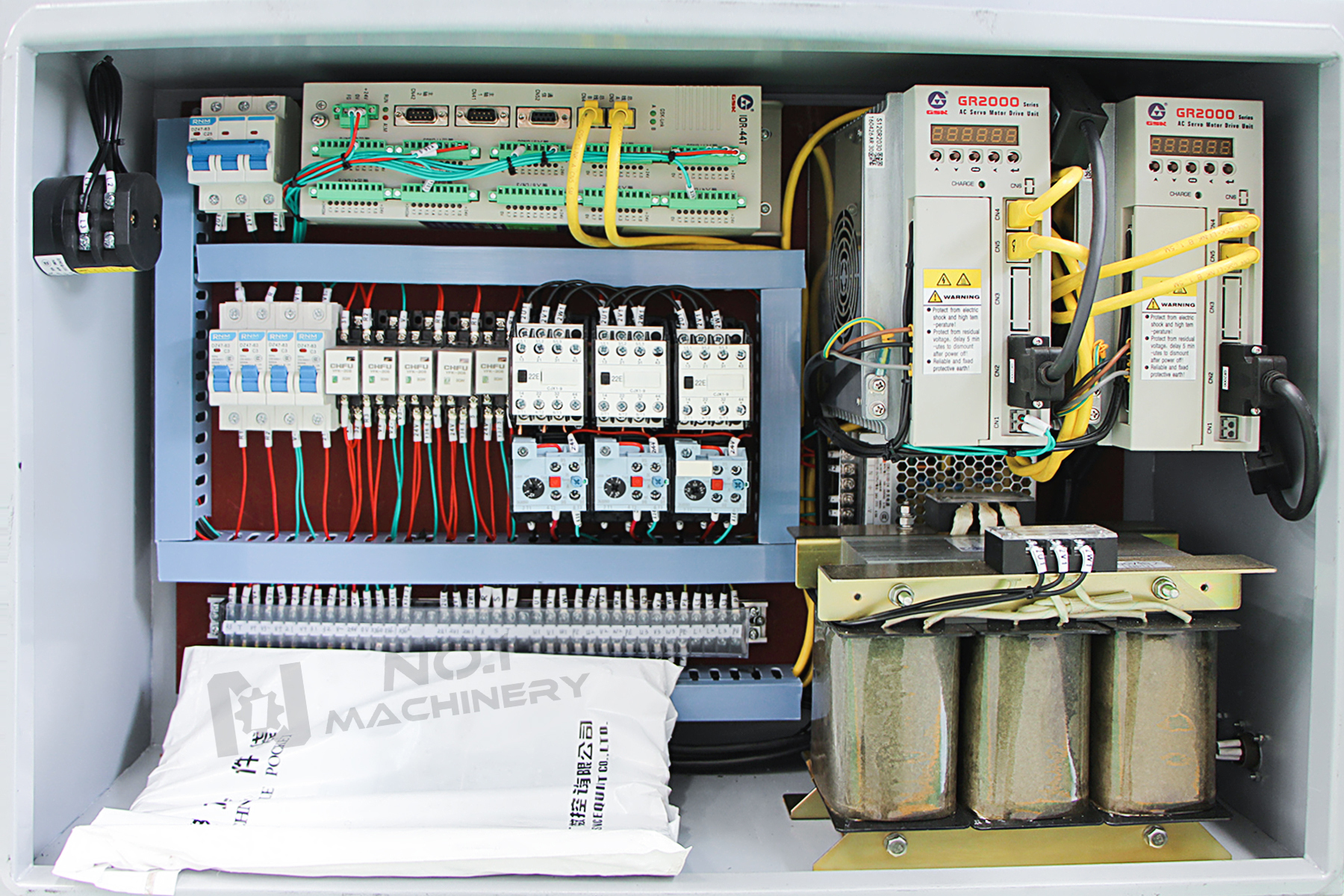

Details Display:
