VMC1580 CNC Vertical Machining Center Heavy Duty 24 Tools CNC Milling Machine

Name: VMC1580 CNC Vertical Machining Center Heavy Duty 24 Tools CNC Milling Machine
Brand: Zaozhuang NO.1
Price: 42000 USD

Buy cheap VMC1580 CNC Vertical Machining Center Heavy Duty 24 Tools CNC Milling Machine product

Brand Name : Zaozhuang NO.1

Model Number : VMC1580

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 42000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Size of worktable (mm) : 1700*800

X/Y/Z Axis Travel（mm） : 1500*800*700

Spindle end taper/diameter : BT50-155

T-shaped groove for table : 5-22*135

Maximum load on table（kg） : 1500

Spindle speed（rpm） : 8000

Machine weight(kg) : 14000

Overall size(mm) : 4000*3000*3050

Contact Now

VMC1580 Cnc Milling Machine Heavy Duty 24 Tools Cnc Vertical Machining Center Price

Product Application:

CNC machine tool structure and shape optimization design, compact, reasonable, rigid strengthening. Can be achieved for a variety of plate, plate and shell, complex parts, such as CAM, mold processing, can complete drilling, milling, tapping and other processes, is suitable for batch production of products, can meet the drilling, tapping, milling process of small and medium-sized workpiece processing.

Product Features:

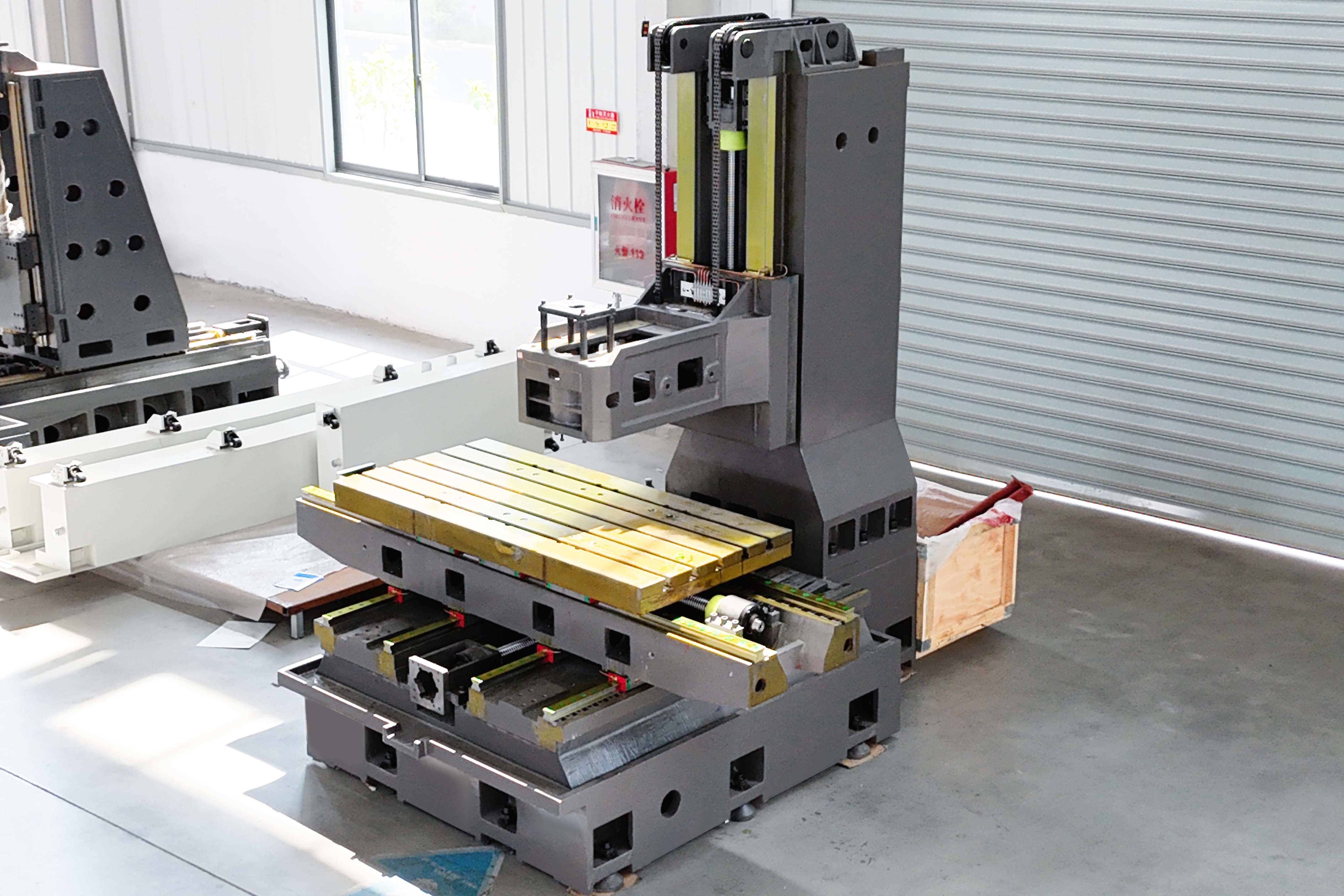

High-precision castings, quenched to eliminate internal stress and ensure accuracy
CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
High-precision Taiwan spindle, good stability and long life
Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
 displacement and obtain the best cycle accuracy.
Fully automatic electronic lubrication system for uniform oil supply and good stability.

Standard configuration:

syntec 22ma control  system
bt40 Taiwan 8000 RPM spindle
Taiwan  hiwin screw
Taiwan hiwin 3 axis roller linear rails
Taiwan OKADA 24 -disc-atc
Electrical cabinet cold  air exchanger

Product Specification:

Item Model	Unit	VMC1580
Size of worktable	mm	1700*800
T-shaped groove for table	mm	5-22*135
Maximum load on table	kg	1500
X/Y/Z rail width	mm	55/45/HARD
X/Y/Z ball screw specification	63mm	5010/6310/5010
X/Y/Z Axis stroke	mm	1500800700
X/Y/Z motor torque	NM	24/24/26
Spindle face to table position	mm	130-830
Distance from Spindle Center to column	mm	810
Cutting feed rate	mm/min	1-8000
X/Y/Z axis fast feed	m/min	12/12/12
Spindle end taper/diameter	mm	BT50-155
Spindle motor power	kw	15
Maximum spindle speed	rpm	8000
Form of Tool Bank	-	Disc
The capacity of knife storage	tools	24/30
Maximum tool diameter/weight	mm/kg	112/200/18
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positioning	mm	0.005
Weight of machine tool	kg	14000
External dimensions	mm	400030003050

Product Display

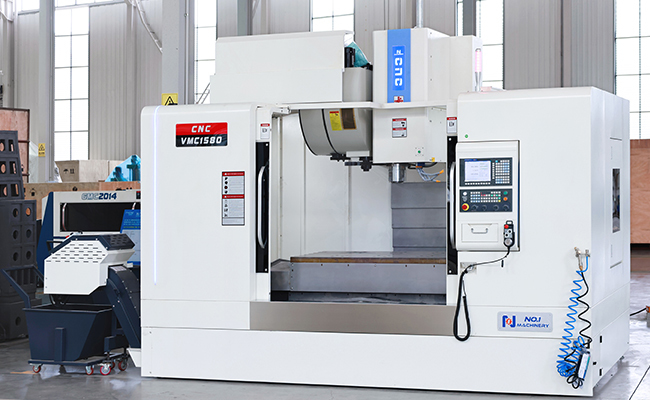

VMC1580 CNC Vertical Machining Center Heavy Duty 24 Tools CNC Milling Machine
